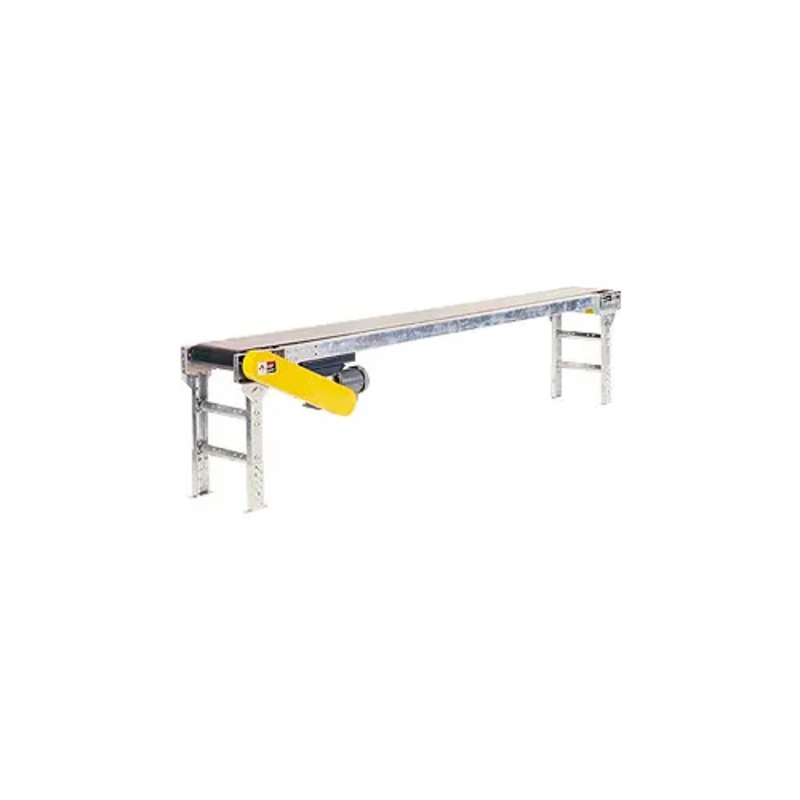

1-1/2 Horsepower Upgrade for Omni Metalcraft Belt Conveyor
OPTIONAL 1-1/2 HP UPGRADE FOR Omni Metalcraft POWER BELT CONVEYORTotally enclosed 1-1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include crowned and fully lagged 8" drive pulleys wit
OPTIONAL 1-1/2 HP UPGRADE FOR Omni Metalcraft POWER BELT CONVEYOR
Totally enclosed 1-1/2 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include crowned and fully lagged 8″ drive pulleys with 1-3/16″ dia. shafts. 60 FPM.
Allows for higher conveyor load capacities than with the standard 1/2 HP motor.
NOTE: This is a Horsepower upgrade to the standard 1/2 HP Motor. It is not a standalone Motor and must be purchased with a Conveyor that it will be applied to.
12″W Belt = 1230 cap. lbs.
20-24″W Belt = 1090 cap. lbs.
| Load Capacity Lbs. Uniformly Distributed Over Length | ||
| Horsepower | 12″W Belt | 20″ – 24″W Belt |
| 1/2 (Standard) | 250 | 160 |
| 3/4 (Optional) | 500 | 390 |
| 1 (Optional) | 740 | 640 |
| 1-1/2 (Optional) | 1230 | 1090 |
| 2 (Optional) | 1680 | 1580 |
