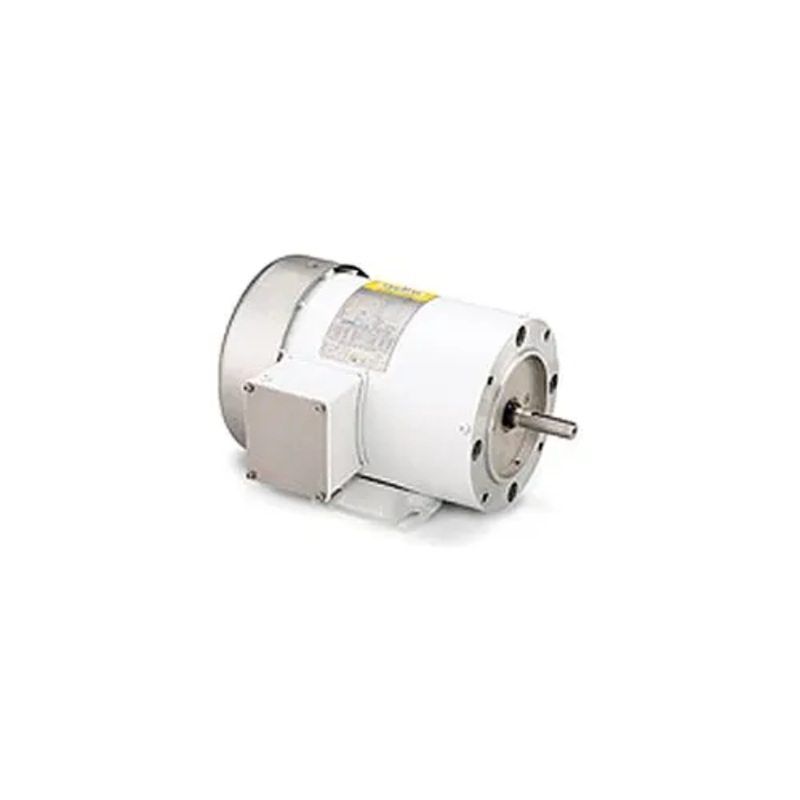

Leeson Motors Motor Washdown Motor-3HP, 208-220/460V, 1770RPM, TEFC, RIGID C, 1.15 SF, 87.5 Eff.
Washguard White Epoxy Coated Motor, 3-Phase: 3HP, 1770 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 182 Frame, RIGID C, 208-220/460V, 3PH, 60HZ, Name Plate Amps 8-8.6/4.3, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 87.5,
Washguard White Epoxy Coated Motor, 3-Phase: 3HP, 1770 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 182 Frame, RIGID C, 208-220/460V, 3PH, 60HZ, Name Plate Amps 8-8.6/4.3, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 87.5, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Length: 2-1/4, Shaft Diameter: 1-1/8.
Enhanced performance in wet, humid areas
- Durable RUST-OLEUM white epoxy coating
- Stainless steel shaft, conduit box cover, nameplate, fan guard
- Special gaskets, slingers and seals
- Four endshield drains
- Moisture-resistant interior components
- Meets IP55 enclosure protection
- Suitable for use on VFDs
- 10:1 ratio for constant or variable torque at 1.0 SF
