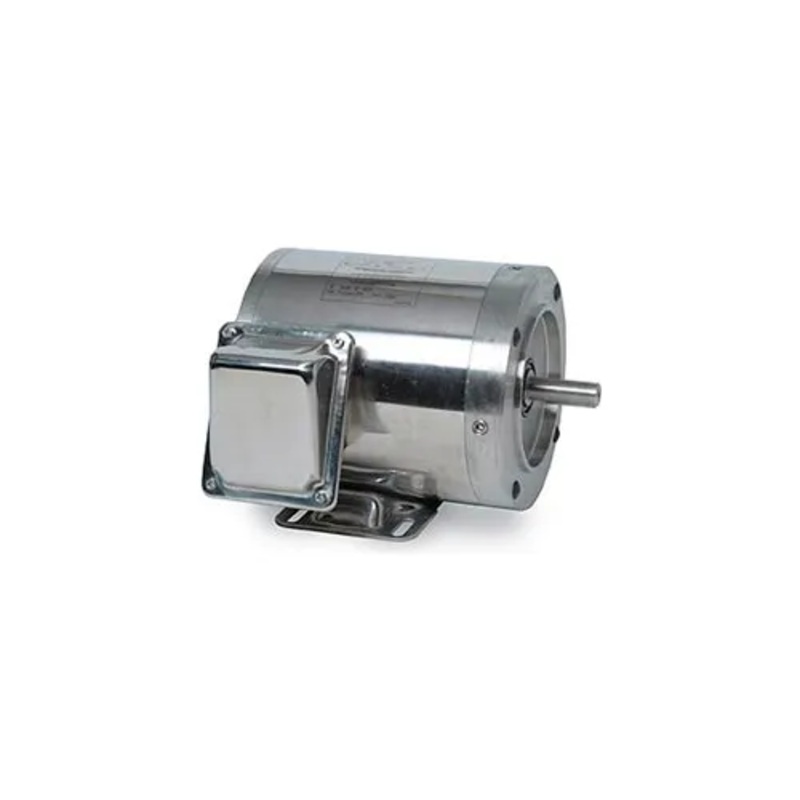

Washguard SST All-Stainless Washdown Motors, 3-Phase: .5/.33HP, 1740/1440 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56 Frame, RIGID C, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 1.5-1.6/.8&1.6/.8, Continuous duty, 1.15 Service Factor, No thermal protection, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8.

Stainless Steel Tough for demanding washdown applications

• All exterior components of 300 series stainless steel, including motor frame, endshield and conduit box castings
• Moisture resistant sealant between frame and endbells
• Full-fact nameplate is laser-etched on the motor frame
• Built to withstand the demanding washdown environments found in the food processing, chemical processing and beverage industries
• No paint or coatings of any type are used on the exterior of the motor
• Four locations for T-drains provided on each endshield
• Meets IP55 enclosure protection
• Three phase motors are suitable for use on VFDs
• 10:1 ratio for constant or variable torque at 1.0 SF
